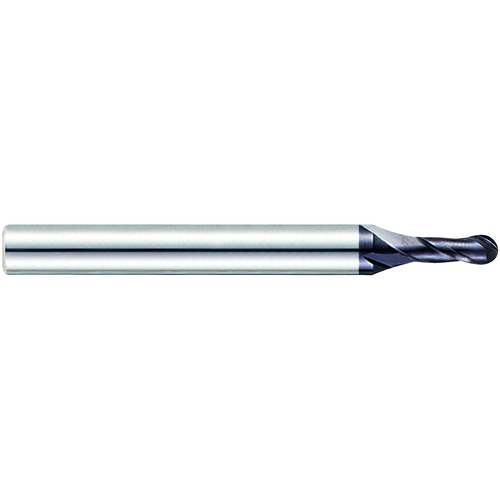

Ball Nose End Mill; 0.8 mm Dia. × 2 mm LOC × 3 mm Shank Dia. × 40 mm OAL ; 2 FL ; Carbide ; ALTiN ; Series EM865
BN End Mill; 0.8 mm Dia. × 2 mm LOC × 3 mm Shank Dia. × 40 mm OAL ; 2 FL ; Carbide ; AlTiN ; Series EM865
| Cutting Diameter (DC) | 0.8 mm | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Corner Radius (RE) | 0.4 mm |
| Depth of Cut Maximum (APMX) | 2 mm | Length Group | Miniature |
| Overall Length (OAL) | 40 mm | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.0315″ |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | EM865 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.625
Package Width
1/0/1900 15:00
Package Height
0.625
Package Weight
0.02
