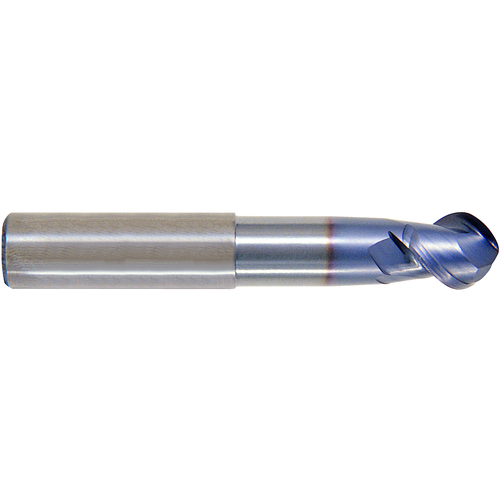

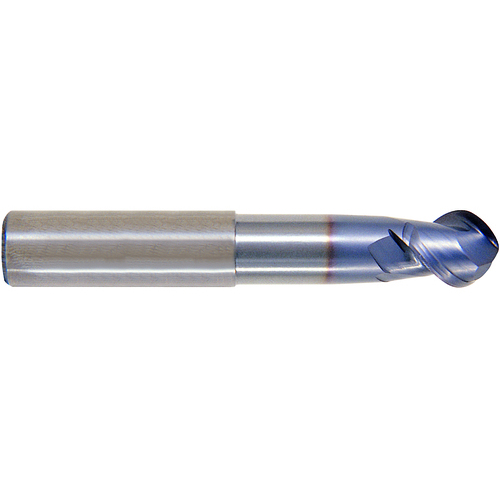

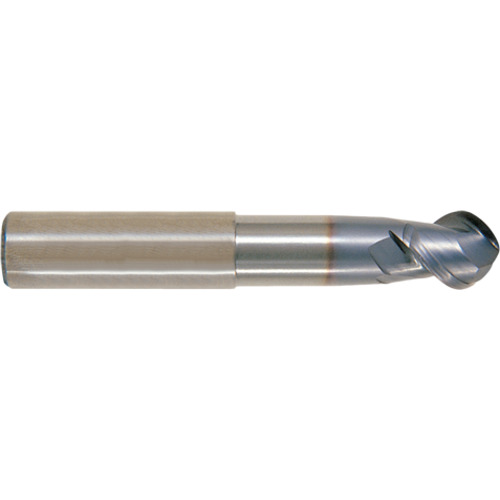

Ball Nose End Mill; 3/4″ Dia. × 11/16″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 2 FL ; Carbide ; TiCN ; Series E5974
BN End Mill; 3/4″ Dia. × 11/16″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 2 FL ; Carbide ; TiCN ; Series E5974
| Cutting Diameter (DC) | 3/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Radius (RE) | 3/8″ |
| Depth of Cut Maximum (APMX) | 11/16″ | Neck Diameter (DN) | 0.671″ |
| Overall Length (OAL) | 4″ | Tool Type | Ball Nose 50 Degree Helix Stub Cut Length with Neck |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | TiCN | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 50 Degrees | Series/List # | E5974 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 2″ | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1.25
Package Height
1.25
Package Weight
0.789
