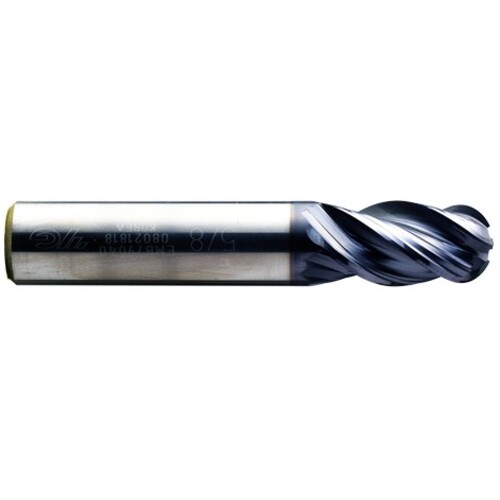

Ball Nose End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; AlTiN ; Series EMB79
BN End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; AlTiN ; Series EMB79
| Cutting Diameter (DC) | 1″ | Usable Length (LU) | 1-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Corner Radius (RE) | 1/2″ |
| Overall Length (OAL) | 4″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 1″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | EMB79 |
| Flute Helix Angle (FHA) | Variable | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6.25
Package Width
1.5
Package Height
1.5
Package Weight
1.383
