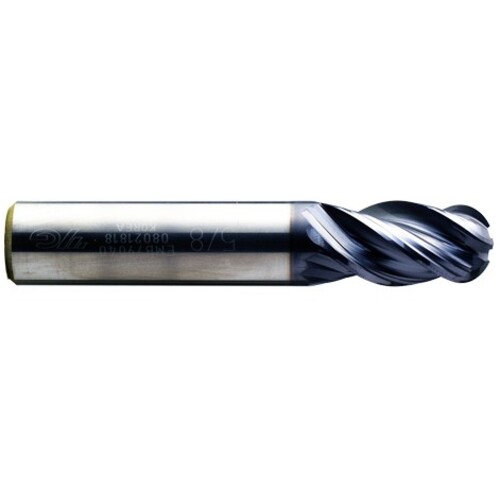

Ball Nose End Mill; 5/32″ Dia. × 7/16″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 4 FL ; Carbide ; AlTiN ; Series EMB78
BN End Mill; 5/32″ Dia. × 7/16″ LOC × 3/16″ Shank Dia. × 2″ OAL ; 4 FL ; Carbide ; AlTiN ; Series EMB78
| Cutting Diameter (DC) | 5/32″ | Usable Length (LU) | 7/16″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 7/16″ | Corner Radius (RE) | 5/64″ |
| Overall Length (OAL) | 2″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1563″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | EMB78 |
| Flute Helix Angle (FHA) | Variable | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.5
Package Width
0.625
Package Height
0.625
Package Weight
0.033
