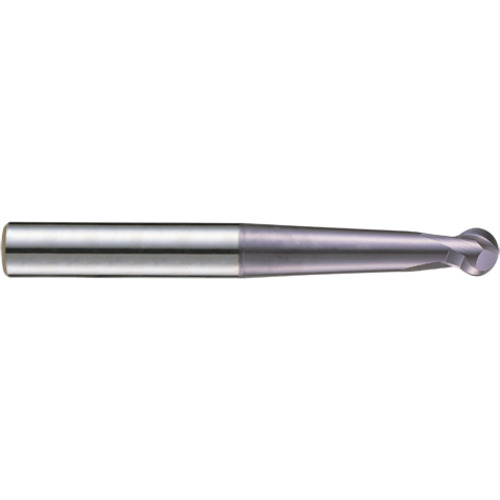

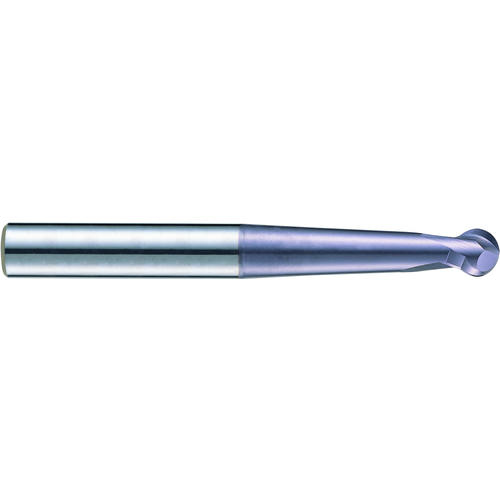

Ball Nose End Mill; 5/8″ Dia. × 1/2″ LOC × 5/8″ Shank Dia. × 6-1/4″ OAL ; 2 FL ; Carbide ; ALTiN ; Series EM096
BN End Mill; 5/8″ Dia. × 1/2″ LOC × 5/8″ Shank Dia. × 6-1/4″ OAL ; 2 FL ; Carbide ; AlTiN ; Series EM096
| Cutting Diameter (DC) | 5/8″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Corner Radius (RE) | 5/16″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Neck Diameter (DN) | 1/2″ |
| Overall Length (OAL) | 6-1/4″ | Length Group | Long |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | AlTiN | Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | EM096 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 2-3/4″ | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
7
Package Width
1/1/1900 0:00
Package Height
1
Package Weight
0.892
