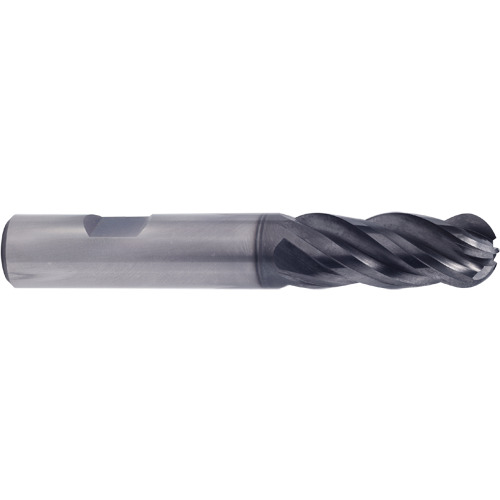

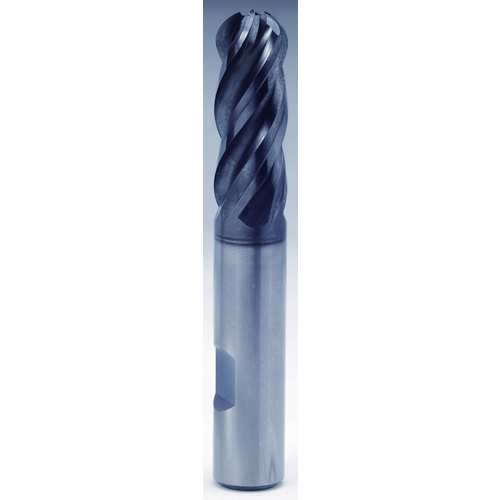

Ball Nose End Mill; 3 mm Dia. × 8 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 4 FL ; Carbide ; Y-Coating ; Series GMG56
BN End Mill; 3 mm Dia. × 8 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 4 FL ; Carbide ; AlCrN ; Series GMG56
| Cutting Diameter (DC) | 3 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 1.5 mm |
| Depth of Cut Maximum (APMX) | 8 mm | End Shape | Ball Nose |
| Overall Length (OAL) | 57 mm | Decimal Equivalent | 0.1181″ |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlCrN | Series/List # | GMG56 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 35 Degrees/37 Degrees | Center Cutting | Yes |
| Shank Type | Weldon |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.625
Package Width
0.625
Package Height
0.625
Package Weight
0.05
