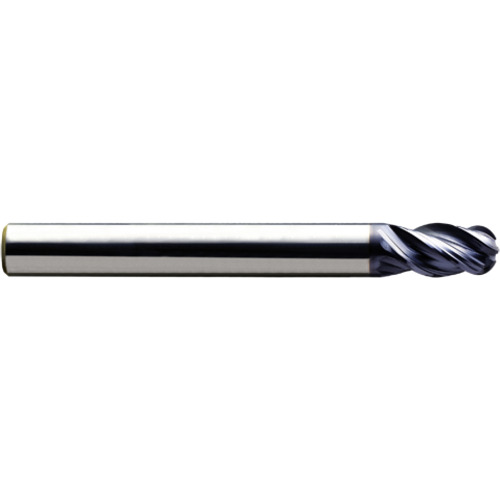

Ball Nose End Mill; 25 mm Dia. × 38 mm LOC × 25 mm Shank Dia. × 104 mm OAL ; 4 FL ; Carbide ; AlTiN ; Series EMB75
BN End Mill; 25 mm Dia. × 38 mm LOC × 25 mm Shank Dia. × 104 mm OAL ; 4 FL ; Carbide ; AlTiN ; Series EMB75
| Cutting Diameter (DC) | 25 mm | Usable Length (LU) | 38 mm |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 38 mm | Corner Radius (RE) | 12.5 mm |
| Overall Length (OAL) | 104 mm | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.9843″ |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | EMB75 |
| Flute Helix Angle (FHA) | Variable | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6.25
Package Width
1.5
Package Height
1.5
Package Weight
0.141
