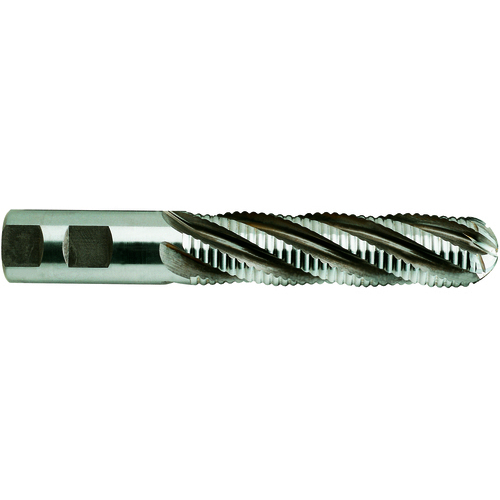

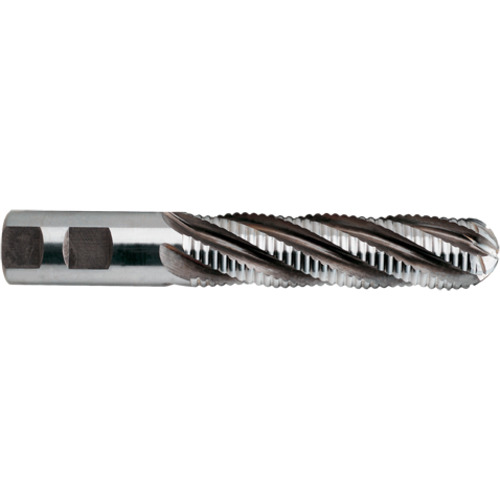

Ball Nose End Mill; 3/4″ Dia. × 3″ LOC × 3/4″ Shank Dia. × 5-1/4″ OAL ; 4 FL ; HSSCo8 ; Bright ; Series E2125
BN End Mill; 3/4″ Dia. × 3″ LOC × 3/4″ Shank Dia. × 5-1/4″ OAL ; 4 FL ; HSSCo8 ; Uncoated ; Series E2125
| Cutting Diameter (DC) | 3/4″ | Corner Radius (RE) | 3/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | HSSCo8 4 Flute Long Length Coarse Pitch Roughing Ball Nose |
| Depth of Cut Maximum (APMX) | 3″ | Length Group | Long |
| Overall Length (OAL) | 5-1/4″ | End Shape | Ball Nose |
| Cutting Edge Material | HSSCo8 | Flute Type | Roughing |
| Coating | Uncoated | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | E2125 |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.875
Package Width
1.25
Package Height
1.25
Package Weight
0.561
