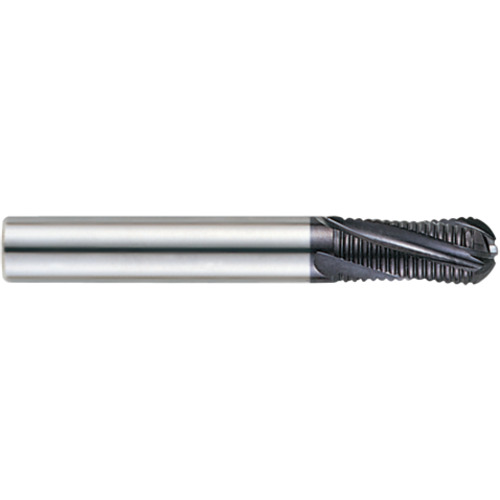

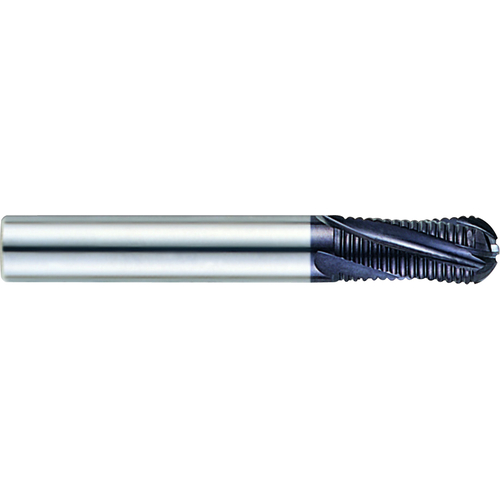

Ball Nose End Mill; 1″ Dia. × 1-3/4″ LOC × 1″ Shank Dia. × 4″ OAL ; 5 FL ; Carbide ; ALTiN ; Series EM662
BN End Mill; 1″ Dia. × 1-3/4″ LOC × 1″ Shank Dia. × 4″ OAL ; 5 FL ; Carbide ; AlTiN ; Series EM662
| Cutting Diameter (DC) | 1″ | Corner Radius (RE) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Length Group | Long |
| Depth of Cut Maximum (APMX) | 1-3/4″ | End Shape | Ball Nose |
| Overall Length (OAL) | 4″ | Flute Type | Roughing |
| Cutting Edge Material | Carbide | Decimal Equivalent | 1″ |
| Coating | AlTiN | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | EM662 |
| Flute Helix Angle (FHA) | 20 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| Applicable Material | | Steel | |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6.25
Package Width
1/1/1900 12:00
Package Height
1.5
Package Weight
0
