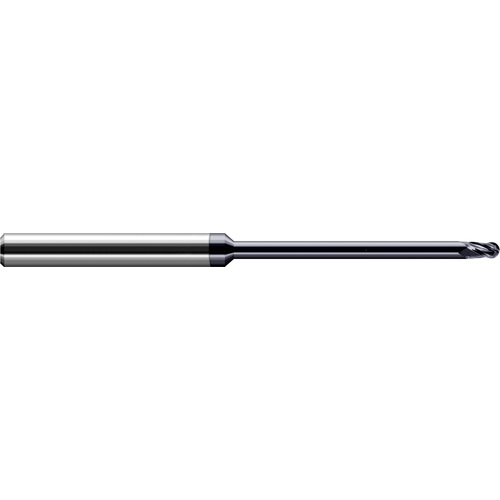

Ballnose End Mill; 1.5 mm Dia. × 2.2 mm LOC × 4 mm Shank Dia. × 63 mm OAL ; 4 FL ; Carbide ; AlTiN
BN End Mill; 1.5 mm Dia. × 2.2 mm LOC × 4 mm Shank Dia. × 63 mm OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1.5 mm | Usable Length (LU) | 24 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 2.2 mm | Length Group | 16D |
| Overall Length (OAL) | 63 mm | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Flute Type | Stub |
| Coating | AlTiN | Decimal Equivalent | 0.0591″ |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.02
