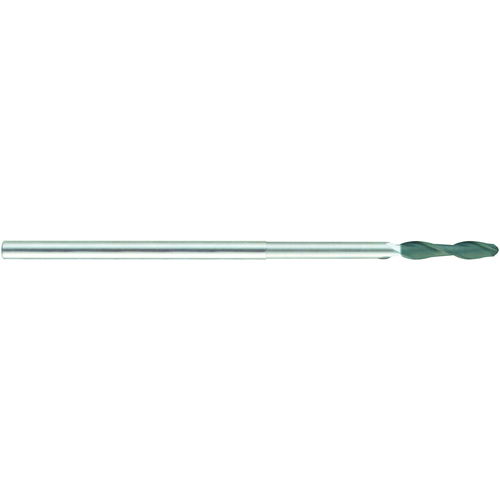

Ball Nose End Mill; 12 mm Dia. × 55 mm LOC × 12 mm Shank Dia. × 130 mm OAL ; 2 FL ; Carbide ; Diamond ; Series El451
BN End Mill; 12 mm Dia. × 55 mm LOC × 12 mm Shank Dia. × 130 mm OAL ; 2 FL ; Carbide ; CVDDIA ; Series El451
| Cutting Diameter (DC) | 12 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Corner Radius (RE) | 6 mm |
| Depth of Cut Maximum (APMX) | 55 mm | Neck Diameter (DN) | 11.5 mm |
| Overall Length (OAL) | 130 mm | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.4724″ |
| Coating | CVDDIA | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | El451 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 75 mm |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.5
Package Width
1
Package Height
1
Package Weight
0.369
