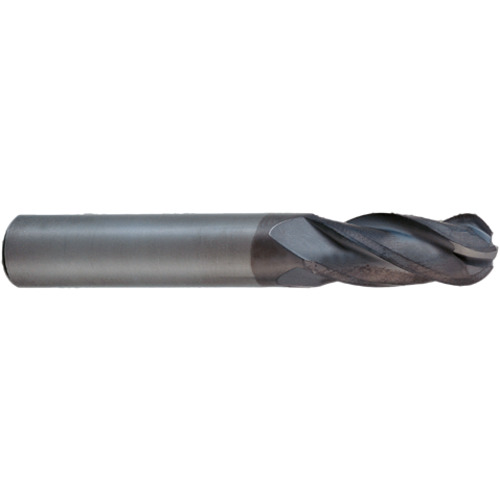

Ball Nose End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; Diamond ; Series El106
BN End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; CVDDIA ; Series El106
| Cutting Diameter (DC) | 1/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 1/8″ |
| Depth of Cut Maximum (APMX) | 3/4″ | End Shape | Ball Nose |
| Overall Length (OAL) | 2-1/2″ | Decimal Equivalent | 0.25″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | CVDDIA | Series/List # | El106 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Shank Type | Round |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.25
Package Width
0.625
Package Height
0.625
Package Weight
0.007
