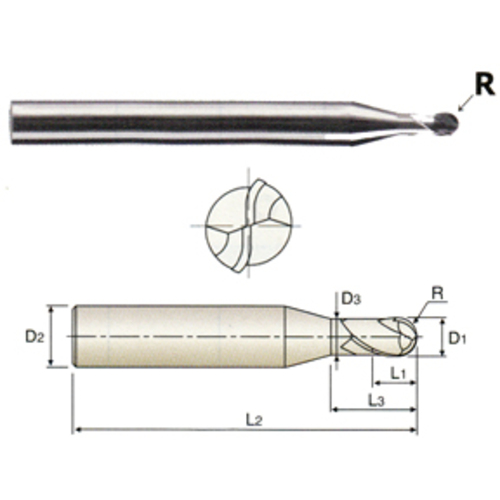

Ball Nose End Mill; 1.5 mm Dia. × 0.95 mm LOC × 4 mm Shank Dia. × 50 mm OAL ; 2 FL ; CBN ; Uncoated ; Series ESB94
| Cutting Diameter (DC) | 1.5 mm | Usable Length (LU) | 6 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Applicable Material | | Hard Materials | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 0.95 mm | Corner Radius (RE) | 0.75 mm |
| Overall Length (OAL) | 50 mm | End Shape | Ball Nose |
| Cutting Edge Material | CBN | Decimal Equivalent | 0.0591″ |
| Coating | Uncoated | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | ESB94 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.519685039
Package Width
0.511811024
Package Height
0.511811024
Package Weight
0.01764
