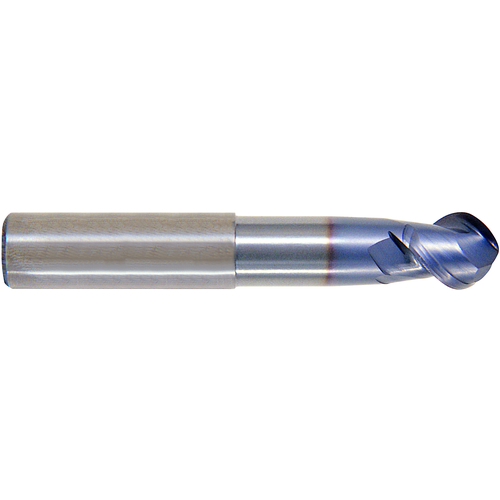

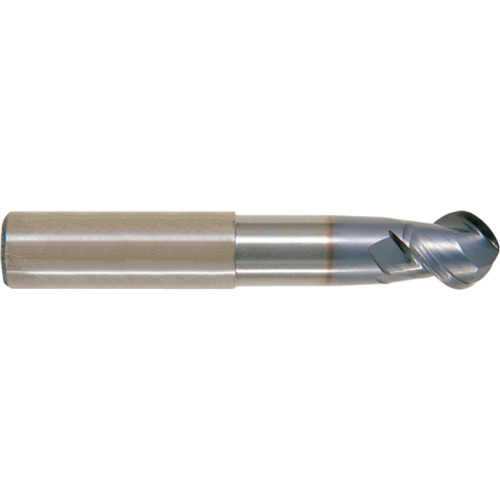

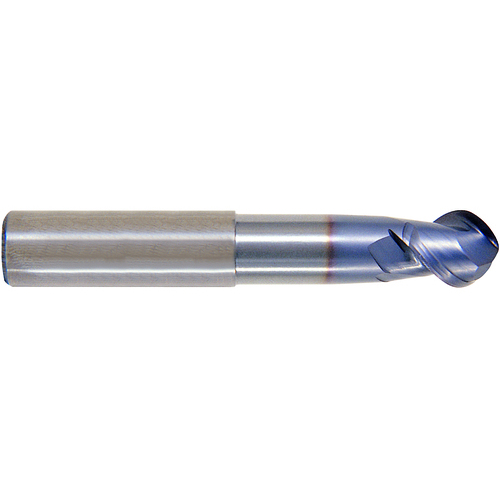

Ball Nose End Mill; 12 mm Dia. × 10.5 mm LOC × 12 mm Shank Dia. × 75 mm OAL ; 2 FL ; Carbide ; TiCN ; Series EG910
BN End Mill; 12 mm Dia. × 10.5 mm LOC × 12 mm Shank Dia. × 75 mm OAL ; 2 FL ; Carbide ; TiCN ; Series EG910
| Cutting Diameter (DC) | 12 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Corner Radius (RE) | 6 mm |
| Depth of Cut Maximum (APMX) | 10.5 mm | Neck Diameter (DN) | 11 mm |
| Overall Length (OAL) | 75 mm | Tool Type | Ball Nose Helix Stub Cut Length with Neck TiCN Coated |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | TiCN | Decimal Equivalent | 0.4724″ |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 50 Degrees | Series/List # | EG910 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 40 mm | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.237
