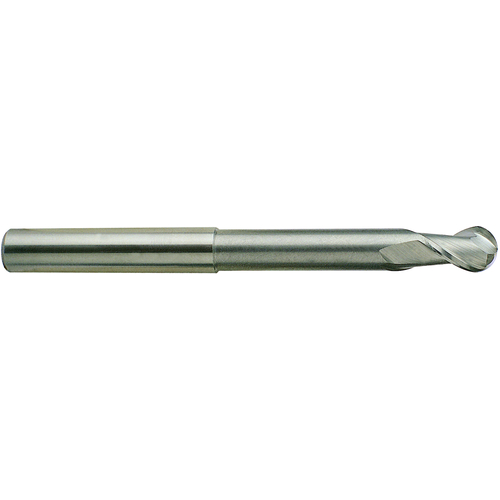

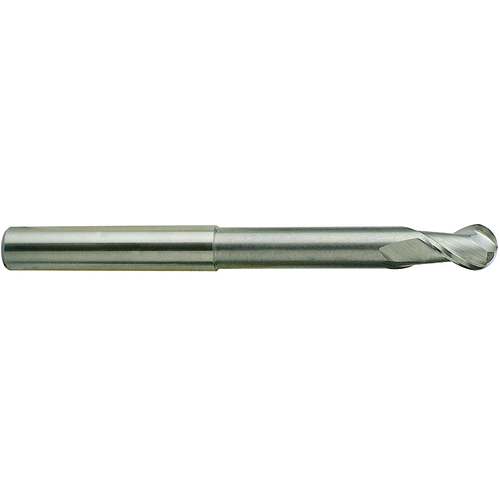

Ball Nose End Mill; 5/8″ Dia. × 3/4″ LOC × 5/8″ Shank Dia. × 5″ OAL ; 2 FL ; Carbide ; Bright ; Series E5978
BN End Mill; 5/8″ Dia. × 3/4″ LOC × 5/8″ Shank Dia. × 5″ OAL ; 2 FL ; Carbide ; Uncoated ; Series E5978
| Cutting Diameter (DC) | 5/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Corner Radius (RE) | 5/16″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Neck Diameter (DN) | 0.585″ |
| Overall Length (OAL) | 5″ | Tool Type | Ball Nose 37 Degree Helix Long Reach |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | Uncoated | Decimal Equivalent | 0.625″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 37 Degrees | Series/List # | E5978 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 2-1/4″ | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.5
Package Width
1
Package Height
1
Package Weight
0.732
