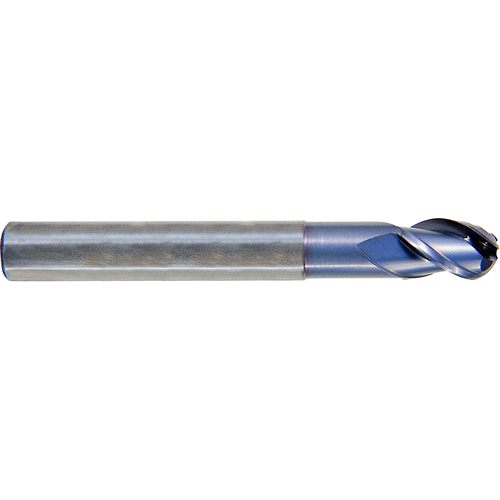

Ball Nose End Mill; 3/32″ Dia. × 1/8″ LOC × 1/4″ Shank Dia. × 2-3/8″ OAL ; 3 FL ; Carbide ; Bright ; Series E5975

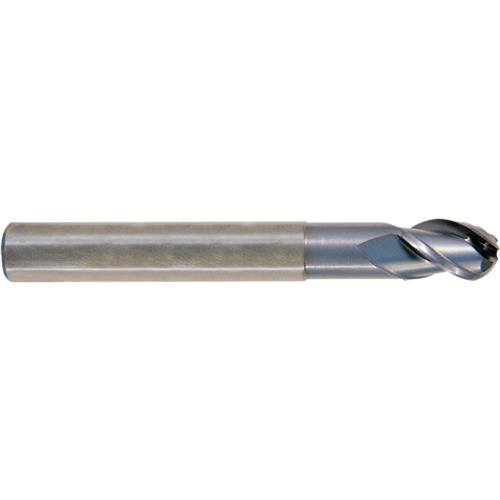

BN End Mill; 3/32″ Dia. × 1/8″ LOC × 1/4″ Shank Dia. × 2-3/8″ OAL ; 3 FL ; Carbide ; Uncoated ; Series E5975
| Cutting Diameter (DC) | 3/32″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 3/64″ |
| Depth of Cut Maximum (APMX) | 1/8″ | Neck Diameter (DN) | 0.09″ |
| Overall Length (OAL) | 2-3/8″ | Tool Type | Ball Nose 40 Degree Helix Long Length with Neck |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | Uncoated | Decimal Equivalent | 0.0938″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 40 Degrees | Series/List # | E5975 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 3/16″ | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.625
Package Width
0.625
Package Height
0.625
Package Weight
0.056
