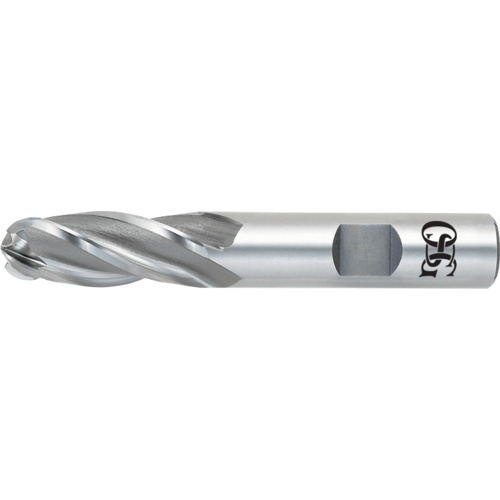

3/4″ Dia. × 3/4″ Shank × 1-5/8″ DOC × 3-7/8″ OAL, HSSCo Bright, 4 Flute, Weldon Flat, Ballnose End Mill
BN End Mill; 3/4″ Dia. × 1-5/8″ LOC × 3/4″ Shank Dia. × 3-7/8″ OAL ; 4 FL ; HSSCo ; Uncoated ; Series 544
| Cutting Diameter (DC) | 3/4″ | Corner Radius (RE) | 3/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | Single-End |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Length Group | Standard |
| Overall Length (OAL) | 3-7/8″ | End Shape | Ball Nose |
| Cutting Edge Material | HSSCo | Style | Center Cutting |
| Coating | Uncoated | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Shank Type | Weldon | Series/List # | 544 |
| Usable Length (LU) | 1-5/8″ |
Product Features
| Remarks | •M-42 Cobalt Ball End, Multi-Flute, Single End Mill | Country of Origin | Japan |
Shipping Info
Package Length
4.00000
Package Width
1.00000
Package Height
.95000
Package Weight
0.4
