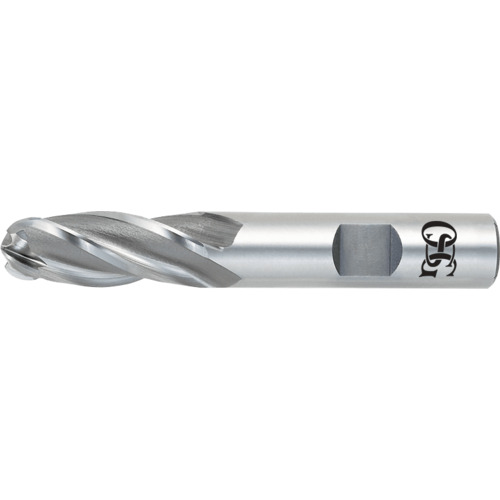

1/2″ Dia. × 1/2″ Shank × 1-1/4″ DOC × 3-1/4″ OAL, HSSCo Bright, 4 Flute, Weldon Flat, Ballnose End Mill
BN End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3-1/4″ OAL ; 4 FL ; HSSCo ; Uncoated ; Series 544
| Cutting Diameter (DC) | 1/2″ | Corner Radius (RE) | 1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Tool Type | Single-End |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Length Group | Standard |
| Overall Length (OAL) | 3-1/4″ | End Shape | Ball Nose |
| Cutting Edge Material | HSSCo | Style | Center Cutting |
| Coating | Uncoated | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Shank Type | Weldon | Series/List # | 544 |
| Usable Length (LU) | 1-1/4″ |
Product Features
| Remarks | •M-42 Cobalt Ball End, Multi-Flute, Single End Mill | Country of Origin | Japan |
Shipping Info
Package Length
3.40000
Package Width
.75000
Package Height
.65000
Package Weight
0.175
