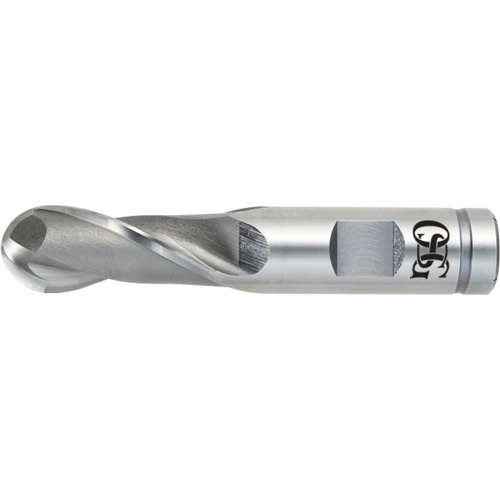

5/16″ Dia. × 3/8″ Shank × 3/4″ DOC × 2-1/2″ OAL, HSSCo Bright, 2 Flute, Round, External , Ballnose End Mill
BN End Mill; 5/16″ Dia. × 3/4″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; HSSCo ; Uncoated ; Series 521
| Cutting Diameter (DC) | 5/16″ | Corner Radius (RE) | 0.156″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Tool Type | Single-End |
| Depth of Cut Maximum (APMX) | 3/4″ | Length Group | Standard |
| Overall Length (OAL) | 2-1/2″ | End Shape | Ball Nose |
| Cutting Edge Material | HSSCo | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Center Cutting |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.3125″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 3/4″ | Series/List # | 521 |
Product Features
| Remarks | •M-42 Cobalt 2-Flute, Ball End •Single End Mills • Center Cutting •M–42 8% Cobalt Steel for the tougher cutting assignments on high-strength, high-temperature steels and exotic materials or extended production runs. | Country of Origin | Japan |
Shipping Info
Package Length
2.60000
Package Width
.65000
Package Height
.55000
Package Weight
0.08
