EBH-A2 08-11W10-61 HS MPC

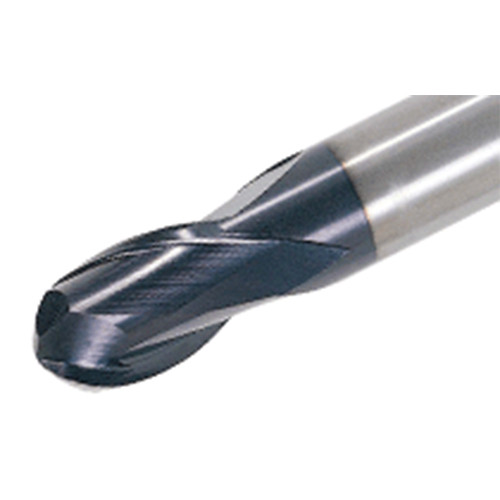

BN End Mill; 8 mm Dia. × 11 mm LOC × 10 mm Shank Dia. × 61 mm OAL ; 2 FL ; HSS ; TiN
| Cutting Diameter (DC) | 8 mm | Corner Radius (RE) | 4 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 11 mm | Corner Radius Tolerance (+/-) (RETOL) | 0.01 mm |
| Overall Length (OAL) | 61 mm | Grade | MPC |
| Cutting Edge Material | HSS | Tool Type | Solid ball nose |
| Coating | TiN | End Shape | Square |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Weldon | Measurement Type | Metric |
| Application | | Profiling | | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | HSS short ball nose endmills, 2 flute 30° helix. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.075
