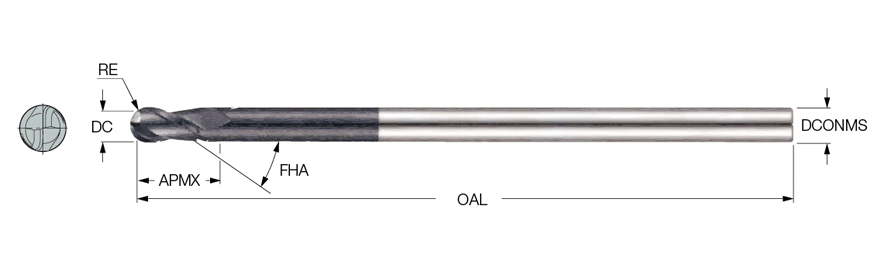

EB-A2 12-22C12M200 IC903

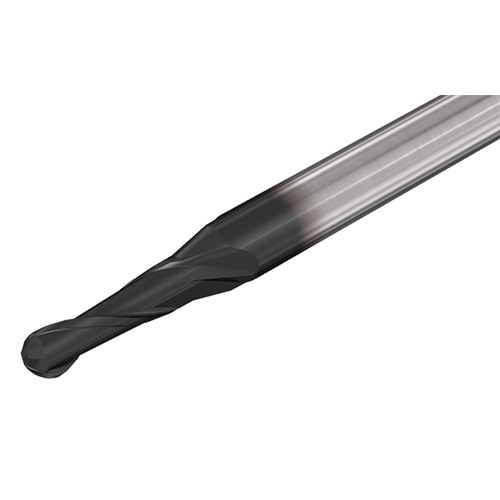

BN End Mill; 12 mm Dia. × 22 mm LOC × 12 mm Shank Dia. × 200 mm OAL ; 2 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 12 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Corner Radius (RE) | 6 mm |
| Depth of Cut Maximum (APMX) | 22 mm | Grade | IC903 |
| Overall Length (OAL) | 200 mm | Tool Type | Solid ball nose |
| Cutting Edge Material | Carbide | End Shape | Square |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | 2 flute, 30° helix extra long solid carbide ball nose endmills for materials up to 65 HRC. | Country of Origin | China |
| Remarks | The DC tolerance is: 0 - -0.030 mm |
Shipping Info
Package Weight
0.705
