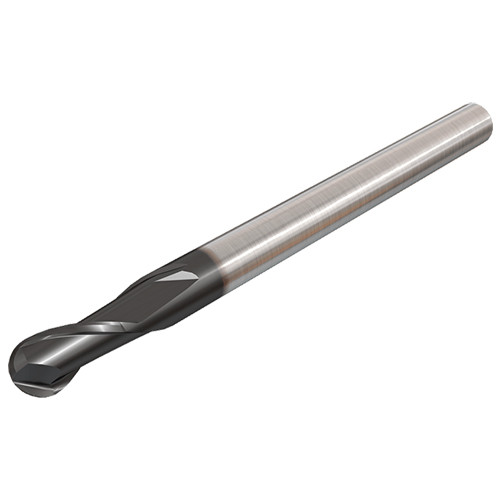

EB020A04-2C03 IC900
BN End Mill; 2 mm Dia. × 4 mm LOC × 3 mm Shank Dia. × 38 mm OAL ; 2 FL ; Carbide ; AlTiN

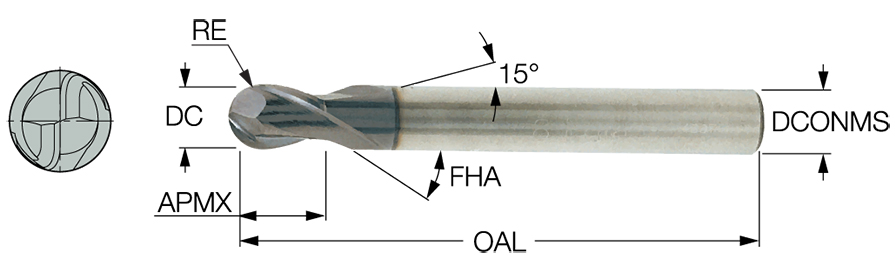

| Cutting Diameter (DC) | 2 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Corner Radius (RE) | 1 mm |
| Depth of Cut Maximum (APMX) | 4 mm | Grade | IC900 |
| Overall Length (OAL) | 38 mm | Tool Type | Solid ball nose |
| Cutting Edge Material | Carbide | End Shape | Square |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | 2 flute, 30° helix short solid carbide ball nose endmills. | Country of Origin | Israel |
| Remarks | Short and stable design for profiling (roughing). |
Shipping Info
Package Weight
0.033
