EB-A4 08-09C08E59 IC08

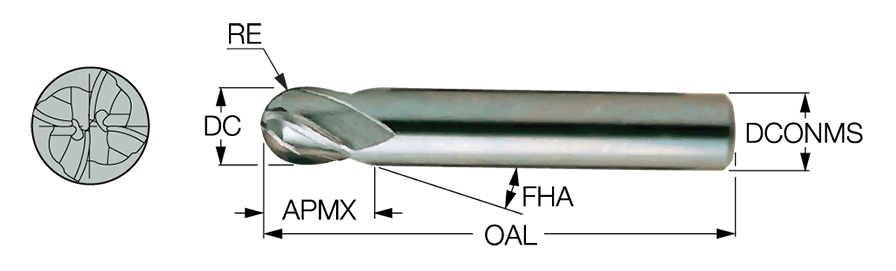

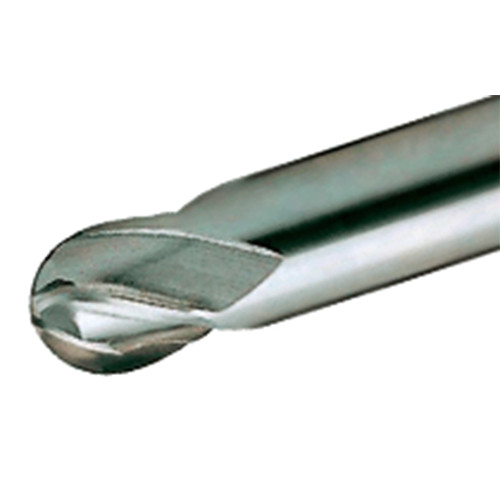

BN End Mill; 8 mm Dia. × 9 mm LOC × 8 mm Shank Dia. × 59 mm OAL ; 4 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 8 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Corner Radius (RE) | 4 mm |
| Depth of Cut Maximum (APMX) | 9 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Overall Length (OAL) | 59 mm | Grade | IC08 |
| Cutting Edge Material | Carbide | Tool Type | Solid ball nose |
| Coating | Uncoated | End Shape | Square |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | SOLIDECO - economical type 4 flute, 30° helix ball nose short solid carbide endmills. | Country of Origin | China |
Shipping Info
Package Weight
0.099
