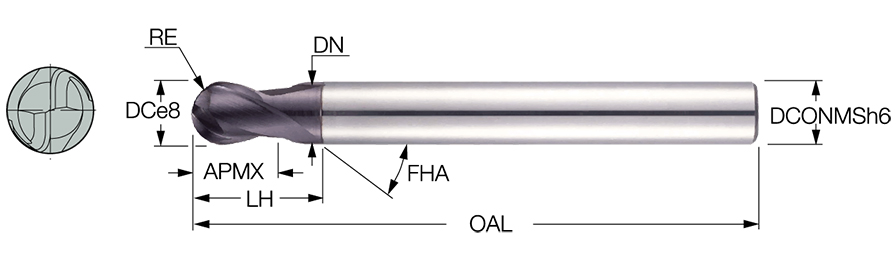

EB-A2 07-07/14C08H90 IC903

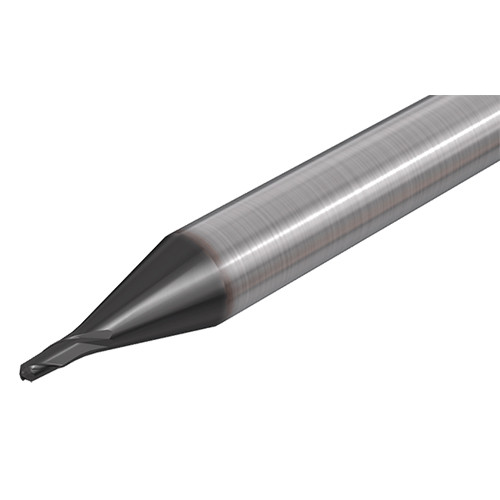

BN End Mill; 7 mm Dia. × 7 mm LOC × 8 mm Shank Dia. × 90 mm OAL ; 2 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 7 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Corner Radius (RE) | 3.5 mm |
| Depth of Cut Maximum (APMX) | 7 mm | Neck Diameter (DN) | 6.9 mm |
| Overall Length (OAL) | 90 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Grade | IC903 |
| Coating | AlTiN | Tool Type | Solid ball nose |
| Flute Count (NOF) | 2 | End Shape | Square |
| Flute Helix Angle (FHA) | 30 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| Usable Length (LU) | 14 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 2 flute, 30° helix stub cut length ball nose solid carbide endmills for materials up to 55-70 HRC. | Country of Origin | Israel |
Shipping Info
Package Weight
0.134
