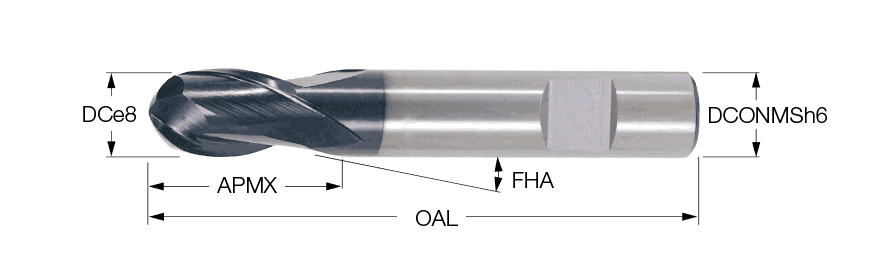

EBH-A2 09-11W10-61 HS MPC
| Cutting Diameter (DC) | 9 mm | Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 11 mm | Grade | MPC |
| Overall Length (OAL) | 61 mm | Tool Type | Sold Ball Nose |
| Cutting Edge Material | HSS | End Shape | Square |
| Coating | TiN | Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
Product Features
| Family Description | HSS short ball nose endmills, 2 flute 30° helix. | Country of Origin | Israel |
Shipping Info
Package Weight
.0750
