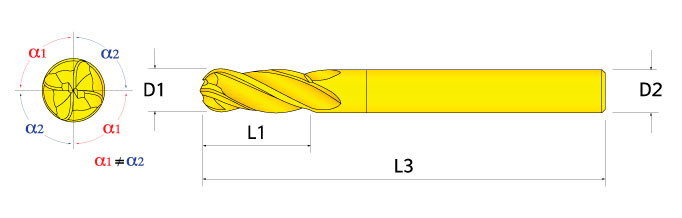

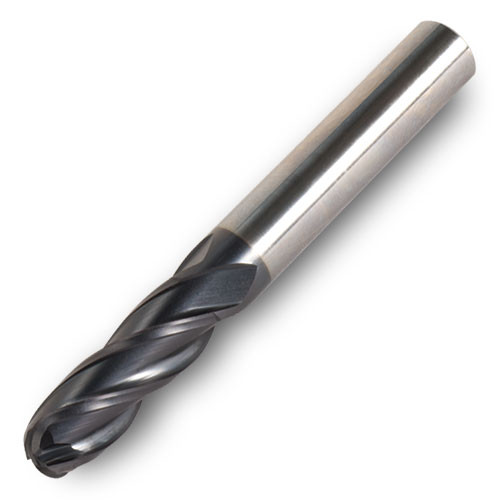

47B-1250R4RQ20 IN2005
BN End Mill; 1/8″ Dia. × 1/2″ LOC × 1/8″ Shank Dia. × 2″ OAL ; 4 FL ; TiAlN
| Cutting Diameter (DC) | 1/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Corner Radius (RE) | 0.062″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Grade | IN2005 |
| Overall Length (OAL) | 2″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | End Shape | Square |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.125″ |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Inch |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Usable Length (LU) | 1/2″ |
Product Features
| Country of Origin | Usa |
Shipping Info
Package Weight
0.000
