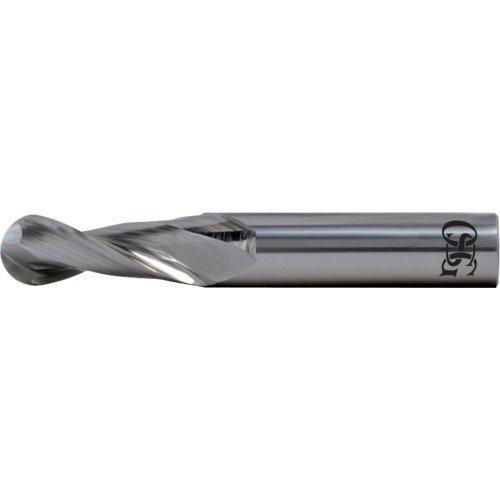

5/16″ Dia. × 5/16″ Shank × 13/16″ DOC × 2-1/2″ OAL, Carbide Bright, 2 Flute, Round, Ballnose End Mill
BN End Mill; 5/16″ Dia. × 13/16″ LOC × 5/16″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 2010
| Cutting Diameter (DC) | 5/16″ | Usable Length (LU) | 13/16″ |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Corner Radius (RE) | 0.156″ |
| Depth of Cut Maximum (APMX) | 13/16″ | Tool Type | High Performance |
| Overall Length (OAL) | 2-1/2″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Style | Ball |
| Coating | Uncoated | Decimal Equivalent | 0.3125″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 2010 |
Product Features
| Remarks | •Carbide End Mill for Aluminum, Aluminum Alloys and Copper Alloys •Regular Length •2 Flute •Ball End •Bright Finish | Country of Origin | USA |
Shipping Info
Package Length
3.15000
Package Width
.55000
Package Height
.45000
Package Weight
0.095
