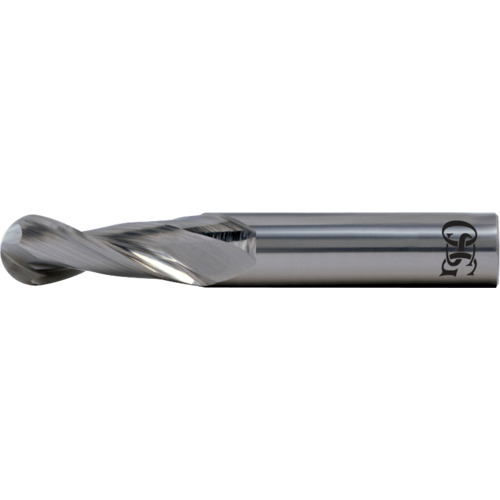

1/4″ Dia. × 1/4″ Shank × 3/4″ DOC × 2-1/2″ OAL, Carbide Bright, 2 Flute, Round, Ballnose End Mill
BN End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 2010
| Cutting Diameter (DC) | 1/4″ | Usable Length (LU) | 3/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Corner Radius (RE) | 1/8″ |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | High Performance |
| Overall Length (OAL) | 2-1/2″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Style | Ball |
| Coating | Uncoated | Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 2010 |
Product Features
| Remarks | •Carbide End Mill for Aluminum, Aluminum Alloys and Copper Alloys •Regular Length •2 Flute •Ball End •Bright Finish | Country of Origin | USA |
Shipping Info
Package Length
3.15000
Package Width
.55000
Package Height
.45000
Package Weight
0.06
