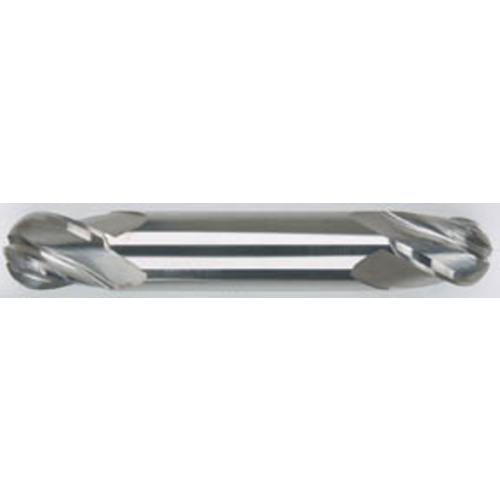

7/32″ Dia. × 1/4″ Shank × 1/2″ DOC × 2-1/2″ OAL, Carbide 4 Flute, 30° Helix, Ballnose End Mill Series/List #5949
| Cutting Diameter (DC) | 7/32″ | Tool Type | Double End |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Length Group | Stub |
| Depth of Cut Maximum (APMX) | 1/2″ | End Shape | Ball Nose |
| Overall Length (OAL) | 2-1/2″ | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | Carbide | Style | Finishing |
| Coating | Uncoated | Decimal Equivalent | 0.21875″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees | Series/List # | 5949 |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 1/2″ |
Product Features
| Remarks | Country of Origin | United States |
Shipping Info
Package Length
4.00000
Package Width
.37500
Package Height
.37500
Package Weight
0.052
