MVLNR16-4C-1 × 1″ SH - RH - Turning Toolholder

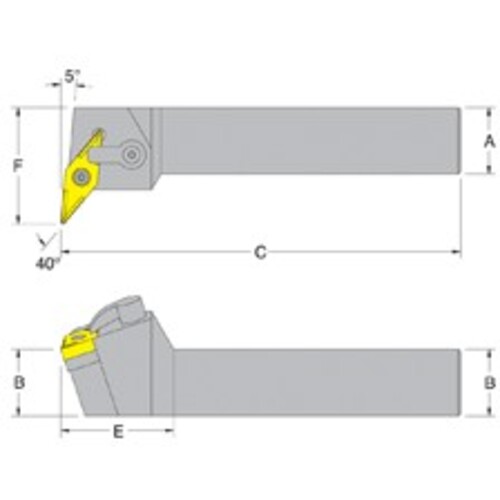

Turning Toolholder; 5″ OAL × 1″ Shank Height × 1″ Shank Width × 1″ Shank Dia. × 1.5 LH ; Right Hand
| Shank Height (H) | 1″ | Master Insert Identification (MIID) | VNM_43_ |
| Shank Width (B) | 1″ | End Chamfer Angle (ECA) | 5 Degrees |
| Overall Length (OAL) | 5″ | Clamping System | CL12 |
| Head Length (LH) | 1.5 | Tool Type | Turning Toolholders-Standard |
| Connection Diameter Machine Side (DCONMS) | 1″ | Style | MVLNR16-4C |
| Inscribed Circle Diameter (IC) | 1/2″ | Insert Style | MVLN |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | •Style L •Negative 5° End Cutting Edge Angle for Negative 35° Diamond VNM_ Inserts | Country of Origin | USA |
Shipping Info
Package Length
5.25000
Package Width
2.00000
Package Height
2.00000
Package Weight
1.55
