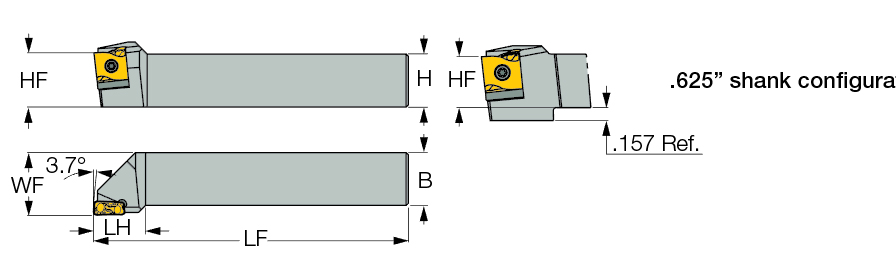

| Shank Height (H) | 2″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Shank Width (B) | 2″ | Body Material | Steel |
| Functional Length (LF) | 8″ | Cutting Position | External |
| Head Length (LH) | 1.6″ | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Width (WF) | 2.28″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | LNMX 22 | Style | SCLCL08-3A |
| Application | | Ext. Tangential 93° Approach | | Insert Style | 8″ |
| Rake Angle Axial (GAMP) | -6 Degrees |

Product Features
| Family Description | Screw-lock tools carrying the LNMX.. tangentially clamped inserts. Recommended for heavy longitudinal and face turning. | Country of Origin | Israel |
Shipping Info
Package Weight
8.915
