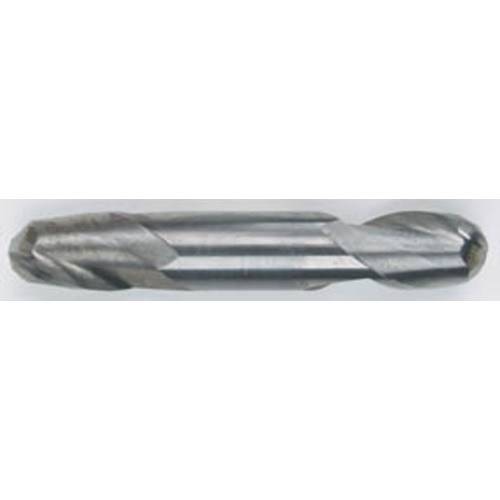

1/2″ Dia. × 1/2″ Shank × 5/8″ DOC × 3″ OAL, Carbide AlTiN, 2 Flute, Ballnose End Mill Series/List #5948T

‹ ›

1/2″ Dia. × 1/2″ Shank × 5/8″ DOC × 3″ OAL, Carbide AlTiN, 2 Flute, Ballnose End Mill Series/List #5948T

Item # MT3290632

UNSPSC: 27112803

Brand: Morse Cutting Tools

MFG#: 90632

UPC #: 686125906320

Quantity Available

Cutting Diameter (DC)

1/2″

Tool Type

Double End

Connection Diameter Machine Side (DCONMS)

1/2″

Length Group

Stub

Depth of Cut Maximum (APMX)

5/8″

End Shape

Ball Nose

Overall Length (OAL)

3″

Coolant Supply Property (CSP)

External

Cutting Edge Material

Carbide

Style

Finishing

Coating

AlTiN

Decimal Equivalent

0.5″

Flute Count (NOF)

Measurement Type

Inch

Flute Helix Angle (FHA)

30 Degrees

Series/List #

5948T

Shank Type

Round

Center Cutting

Yes

Applicable Material

| Carbide |

Product Features

Remarks

2-Flute Sub Length Ball Nose Double End Mills ó Solid Carbide• Ball Nose end mills are designed for milling die cavities, fillets, round bottom holes and radius bottom slots• 2-flute end mills provide increased chip capacity• Center Cutting end allows for pluge cutting like a drill into solid materials• Solid Carbide offers higher cutting speeds, high rigidity, excellent hardness, wear resistance and long tool life• TiALN - Titanium Aluminum Nitride excellent all around coatings featuring high heat resistance. Recommended for high thermal stress applications including dry machining, abrasive materials and hard-to-machine materials that generate higher cutting temperatures.

Country of Origin

United States

Shipping Info

Package Length

3.12500

Package Width

.50000

Package Height

.50000

Package Weight

0.246
