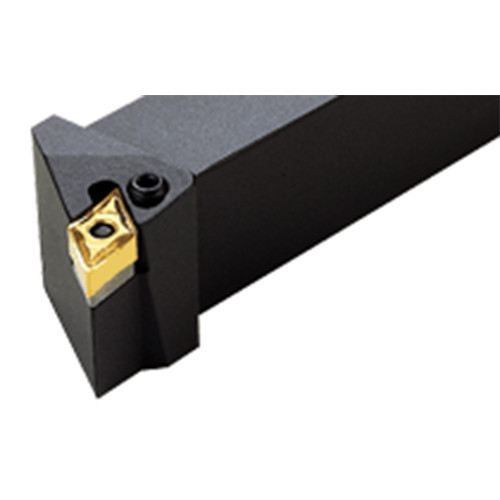

PDJNR 16-4

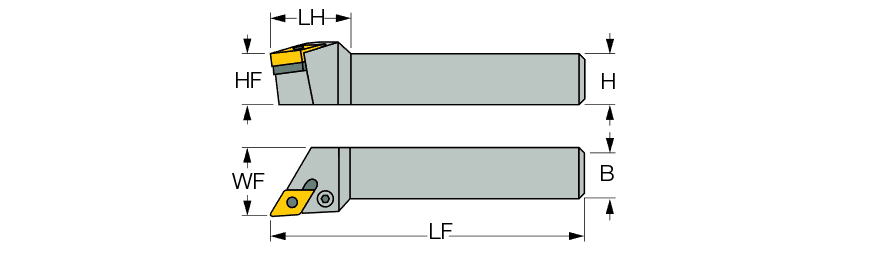

| Shank Height (H) | 1″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Head Length (LH) | 1.4″ | Cutting Position | External |
| Functional Width (WF) | 1-1/4″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Style | PDJNR 16-4 |
| Master Insert Identification (MIID) | DNMG 44. | Insert Style | 6″ |
| Application | | Ext. 55° Diamond 93° Approach | |
Product Features
| Family Description | Lever lock tools carrying 55° negative rhombic inserts. | Country of Origin | S.Korea |
| Remarks | For DN.. 44. inserts use TDN 422 seat (ordered separately) |
Shipping Info
Package Weight
1.693
