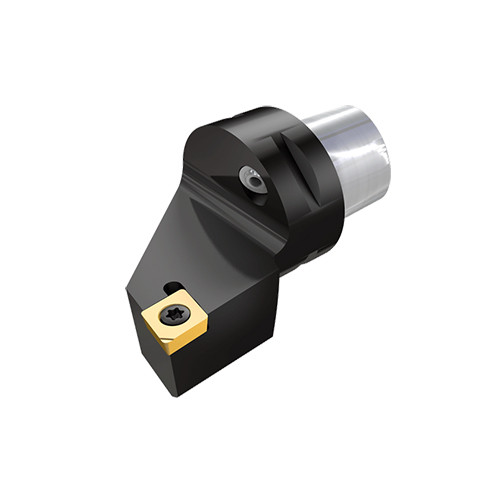

C4 SCLCL-27050-09
Turning Toolholder; 2.913″ OAL × 1.575″ Shank Dia. ; Left Hand ; Steel

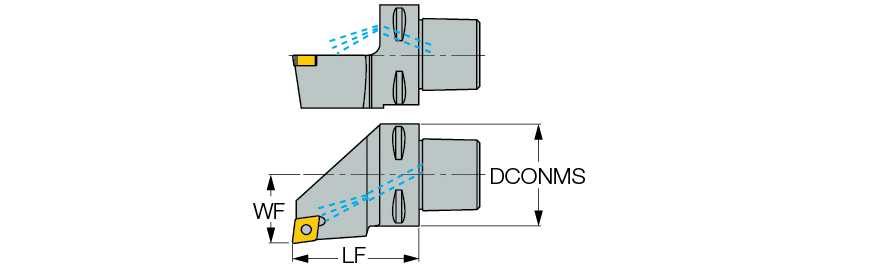

| Overall Length (OAL) | 2.913″ | Application | | Ext. 80° Diamond 95° Approach | |
| Functional Length (LF) | 1.968″ | Body Material | Steel |
| Functional Width (WF) | 1.063″ | Cutting Position | External |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Tool Type | Tapered Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | CC.. 09T3 | Insert Style | 1.968″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Screw lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks, for 80° rhombic inserts with 7° clearance angle. | Country of Origin | Israel |
Shipping Info
Package Weight
0.880
