1/2X4-1/2 2FL BN EXT

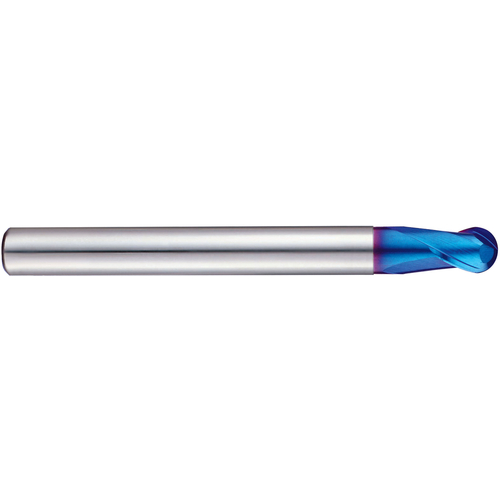

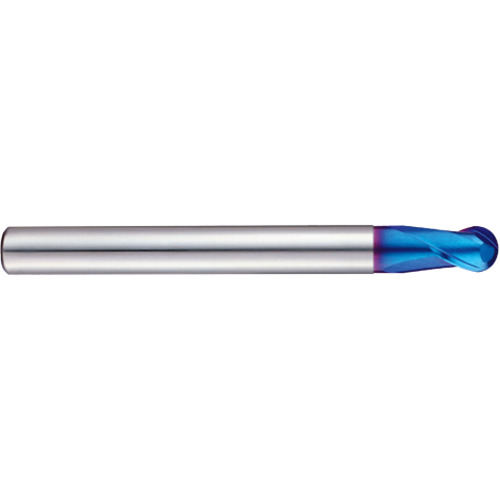

BN End Mill; 1/2″ Dia. × 1/2″ LOC × 1/2″ Shank Dia. × 4-1/2″ OAL ; 2 FL ; Carbide ; AlTiSiN ; Series G8A43
| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Steel | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 1/4″ |
| Depth of Cut Maximum (APMX) | 1/2″ | Neck Diameter (DN) | 0.496″ |
| Overall Length (OAL) | 4-1/2″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | AlTiSiN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | G8A43 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| Usable Length (LU) | 1″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.875
Package Width
0.75
Package Height
0.75
Package Weight
0.45
