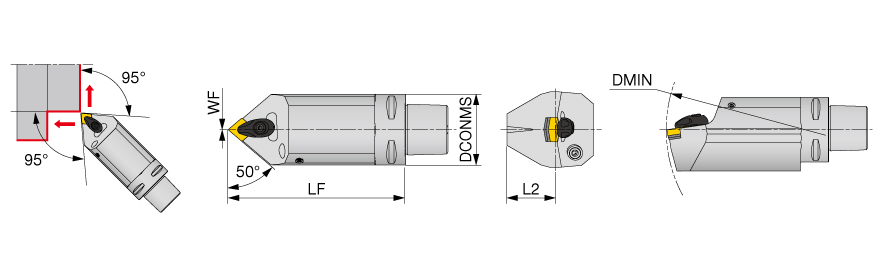

C5ACLNN00090-12
Turning Toolholder; 4.724″ OAL × 1/2″ Shank Height × 1/2″ Shank Width × 1.969″ Shank Dia. ; Neutral ; Steel
| Shank Height (H) | 1/2″ | Master Insert Identification (MIID) | CNMG432 |
| Shank Width (B) | 1/2″ | Application | | Face contact interface | For 80deg Rhombic insert | |
| Overall Length (OAL) | 4.724″ | Body Material | Steel |
| Functional Length (LF) | 3.543″ | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Width (WF) | 0″ | Tool Type | Tapered Shank Turning Tools |
| Connection Diameter Machine Side (DCONMS) | 1.969″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral | Style | SCLCL08-3A |
Product Features
| Family Description | "TungCap" Double-clamp toolholder with 95deg approach angle, for negative 80deg rhombic inserts | Country of Origin | Japan |
| Remarks | The last character of designation is "N": Capable for 7 MPa coolant pressure. |
Shipping Info
Package Weight
2.933
