C5PCLNL35060-12
Turning Toolholder; 2.362″ OAL × 1/2″ Shank Height × 1/2″ Shank Width × 50 Shank Dia. × 1.26″ LH ; Left Hand ; Steel

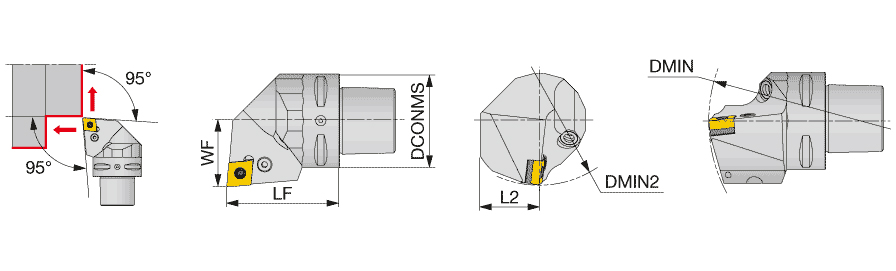

| Shank Height (H) | 1/2″ | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 1/2″ | Body Material | Steel |
| Overall Length (OAL) | 2.362″ | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Length (LF) | 4″ | Tool Type | Tapered Shank Turning Tools |
| Head Length (LH) | 1.26″ | Measurement Type | Inch |
| Functional Width (WF) | 5/8″ | Style | SCLCL08-3A |
| Connection Diameter Machine Side (DCONMS) | 50 |
Product Features
| Family Description | "TungCap" Lever lock type toolholder with 95deg approach angle, for negative 80deg rhombic inserts | Country of Origin | Japan |
| Remarks | The last character of designation is "N":Capable for 7MPa coolant pressure. |
Shipping Info
Package Weight
2.145
