C6ACLNR45065-12

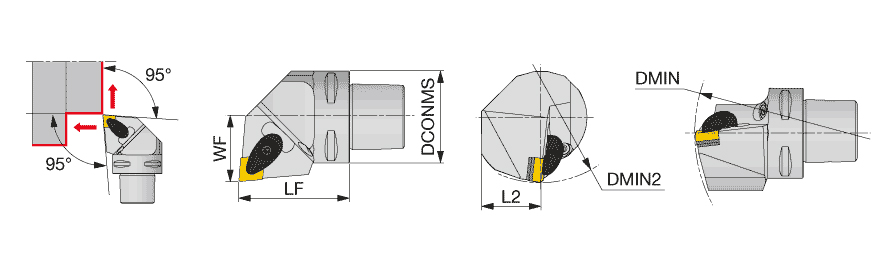

Turning Toolholder; 2.559″ OAL × 1/2″ Shank Height × 1/2″ Shank Width × 63 Shank Dia. × 1.614″ LH ; Right Hand ; Steel
| Shank Height (H) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 1/2″ | Body Material | Steel |
| Overall Length (OAL) | 2.559″ | End Chamfer Angle (ECA) | 95 Degrees |
| Functional Length (LF) | 4″ | Tool Type | Tapered Shank Turning Tools |
| Head Length (LH) | 1.614″ | Measurement Type | Inch |
| Functional Width (WF) | 5/8″ | Style | SCLCL08-3A |
| Connection Diameter Machine Side (DCONMS) | 63 |
Product Features
| Family Description | "TungCap" Double-clamp toolholder with 95deg approach angle, for negative 80deg rhombic inserts | Country of Origin | Japan |
| Remarks | The last character of designation is "N":Capable for 7MPa coolant pressure. |
Shipping Info
Package Weight
3.462
