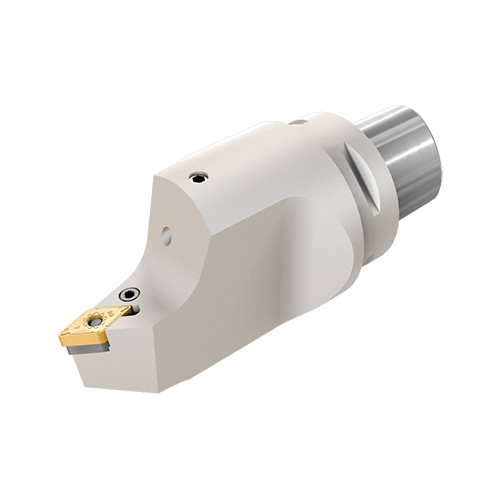

C6 PDXNL-00130-15

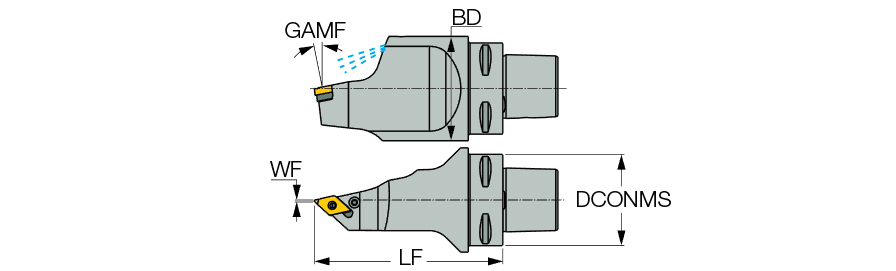

| Functional Length (LF) | 5.118″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Functional Width (WF) | 0.02″ | Body Diameter (BD) | 2.835″ |
| Connection Diameter Machine Side (DCONMS) | 63″ | Weight of Item (WT) | 1.1 lbs |
| Inscribed Circle Diameter (IC) | 1/2″ | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Tool Type | Tapered Shank Turning Tools |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Inch |
| Application | | Ext. 55° Diamond 77° Approach | | Style | SCLCL08-3A |
Product Features
| Family Description | Lever clamp tools with CAMFIX (ISO 26623-1) shanks carrying the negative 55° rhombic inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
5.273
