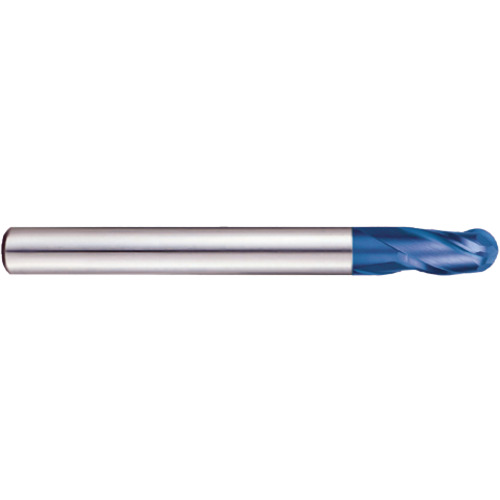

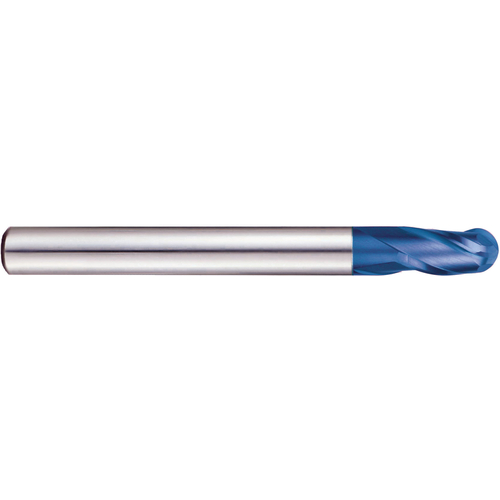

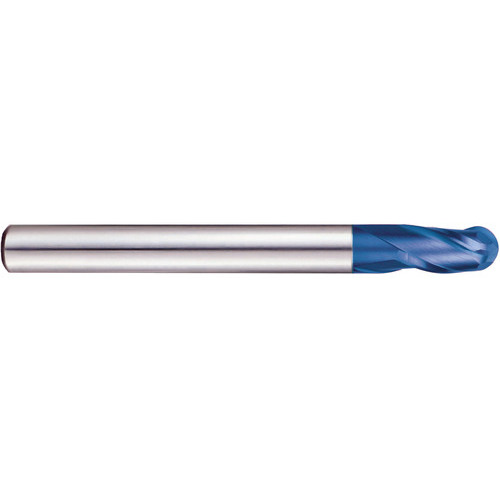

Ball Nose End Mill; 16 mm Dia. × 30 mm LOC × 16 mm Shank Dia. × 140 mm OAL ; 3 FL ; Carbide ; Blue Coating ; Series G8A59
BN End Mill; 16 mm Dia. × 30 mm LOC × 16 mm Shank Dia. × 140 mm OAL ; 3 FL ; Carbide ; AlTiSiN ; Series G8A59
| Cutting Diameter (DC) | 16 mm | Applicable Material | | Steel | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Corner Radius (RE) | 8 mm |
| Depth of Cut Maximum (APMX) | 30 mm | End Shape | Ball Nose |
| Overall Length (OAL) | 140 mm | Decimal Equivalent | 0.6299″ |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlTiSiN | Series/List # | G8A59 |
| Flute Count (NOF) | 3 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Shank Type | Round |
Product Features
| Country of Origin | S.Korea |
