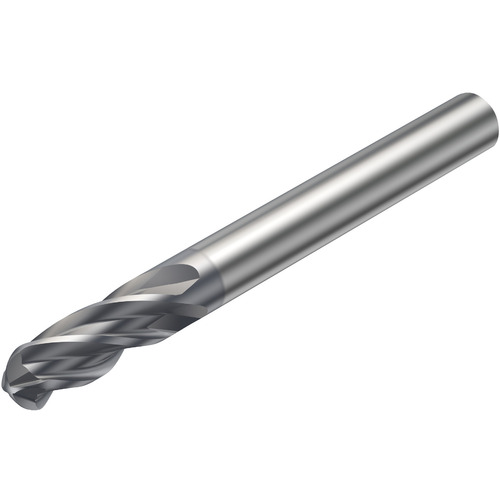

3 mm Dia. × 6 mm Shank × 8 mm DOC × 80 mm OAL, Carbide AlCrN, 4 Flute, CW|30° Helix, Round, External , Ballnose End Mill
BN End Mill; 3 mm Dia. × 8 mm LOC × 6 mm Shank Dia. × 80 mm OAL ; 4 FL ; Carbide ; AlCrN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 3 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 8 mm | Corner Radius (RE) | 1.5 mm |
| Overall Length (OAL) | 80 mm | Length Group | 2.7D |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | AlCrN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.1181″ |
| Flute Helix Angle (FHA) | CW|30 Degrees |
Product Features
| Country of Origin | Italy |
Shipping Info
Package Weight
0.09
