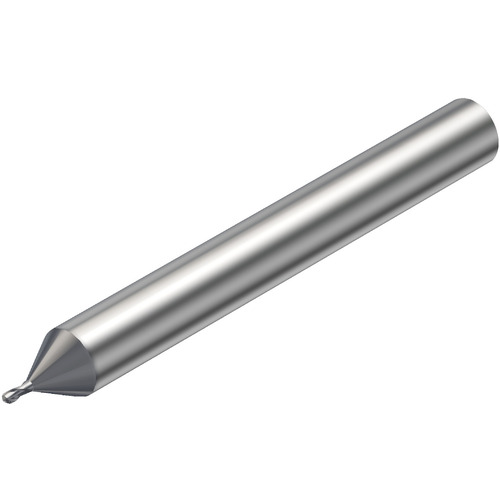

1 mm Dia. × 6 mm Shank × 2.5 mm DOC × 54 mm OAL, Carbide TiAlN, 2 Flute, CW|30° Helix, Round, External , Ballnose End Mill
BN End Mill; 1 mm Dia. × 2.5 mm LOC × 6 mm Shank Dia. × 54 mm OAL ; 2 FL ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 2.7 mm |
| Depth of Cut Maximum (APMX) | 2.5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 54 mm | Corner Radius (RE) | 0.5 mm |
| Cutting Edge Material | Carbide | Length Group | 2.5D |
| Coating | TiAlN | End Shape | Ball Nose |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|30 Degrees | Decimal Equivalent | 0.0394″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.066
