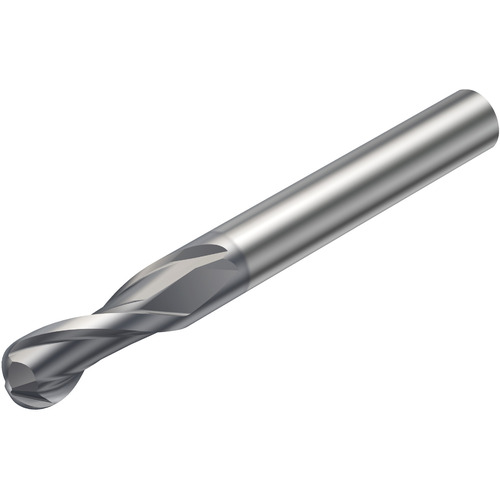

1/8″ Dia. × 1/4″ Shank × 1/4″ DOC × 3″ OAL, Carbide TiAlN, 2 Flute, CW|30° Helix, Round, External , Ballnose End Mill
BN End Mill; 1/8″ Dia. × 1/4″ LOC × 1/4″ Shank Dia. × 3″ OAL ; 2 FL ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 1/8″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Usable Length (LU) | 0.61″ |
| Depth of Cut Maximum (APMX) | 1/4″ | Applicable Material | | Steel | Hard Materials | |
| Overall Length (OAL) | 3″ | Corner Radius (RE) | 0.062″ |
| Cutting Edge Material | Carbide | Length Group | 2D |
| Coating | TiAlN | End Shape | Ball Nose |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|30 Degrees | Decimal Equivalent | 0.125″ |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.009
