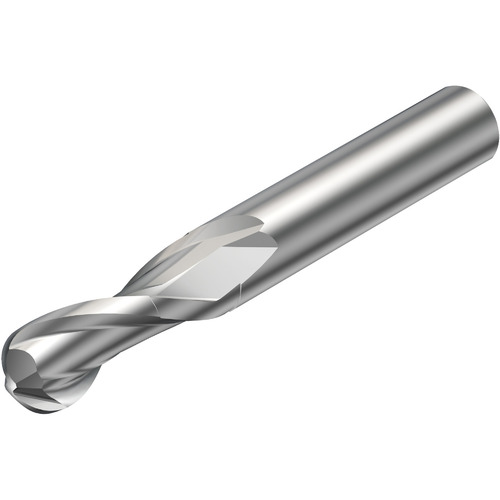

5 mm Dia. × 5 mm Shank × 14.8 mm DOC × 50 mm OAL, Carbide 1 Flute, CW|40° Helix, Round, External , Ballnose End Mill
BN End Mill; 5 mm Dia. × 14.8 mm LOC × 5 mm Shank Dia. × 50 mm OAL ; 1 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 5 mm | Usable Length (LU) | 14.8 mm |
| Connection Diameter Machine Side (DCONMS) | 5 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 14.8 mm | Corner Radius (RE) | 2.5 mm |
| Overall Length (OAL) | 50 mm | Length Group | 3D |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Flute Count (NOF) | 1 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|40 Degrees | Decimal Equivalent | 0.1969″ |
| Shank Type | Round |
Product Features
| Country of Origin | Sweden |
Shipping Info
Package Weight
0.051
