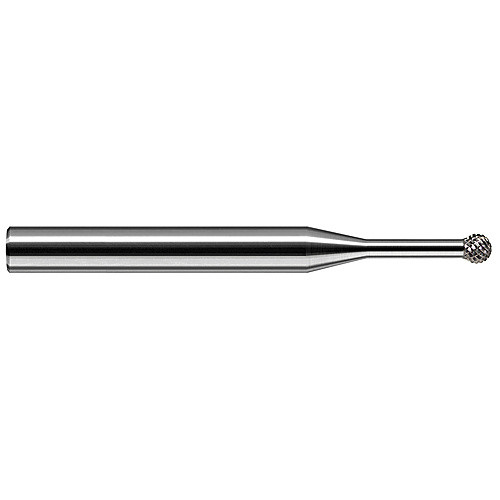

Ballnose End Mill; 3/16″ Dia. × 0.16″ LOC × 3/16″ Shank Dia. × 3″ OAL ; Carbide ; Uncoated
BN End Mill; 3/16″ Dia. × 0.16″ LOC × 3/16″ Shank Dia. × 3″ OAL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 3/16″ | Usable Length (LU) | 1.133″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Corner Radius (RE) | 0.0935″ |
| Depth of Cut Maximum (APMX) | 0.16″ | End Shape | Ball Nose |
| Overall Length (OAL) | 3″ | Decimal Equivalent | 0.1875″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Uncoated | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Single / Double End | Single End |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 270 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.043
