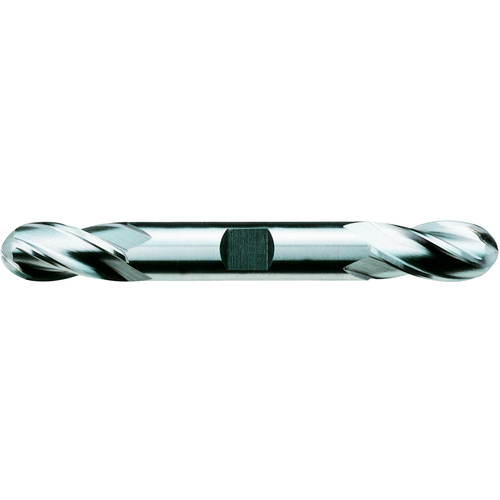

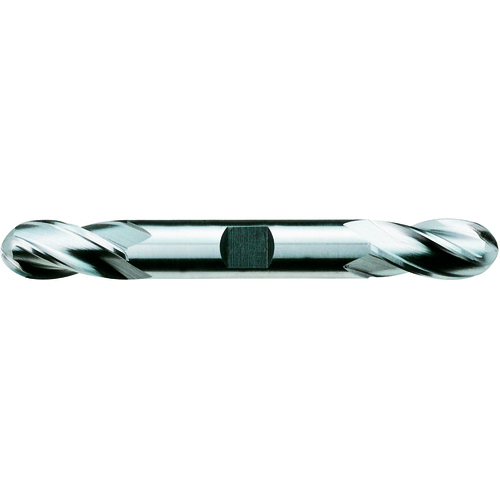

Ball Nose End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 4-1/8″ OAL ; 4 FL ; HSSCo8 ; TiN ; Series E2069
| Cutting Diameter (DC) | 1/2″ | Corner Radius (RE) | 1/4″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Length Group | Regular |
| Depth of Cut Maximum (APMX) | 1″ | End Shape | Ball Nose |
| Overall Length (OAL) | 4-1/8″ | Decimal Equivalent | 0.5″ |
| Cutting Edge Material | HSSCo8 | Measurement Type | Inch |
| Coating | TiN | Series/List # | E2069 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Shank Type | Weldon | Single / Double End | Double |
| Applicable Material | | Steel | |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1
Package Height
1
Package Weight
0.221
