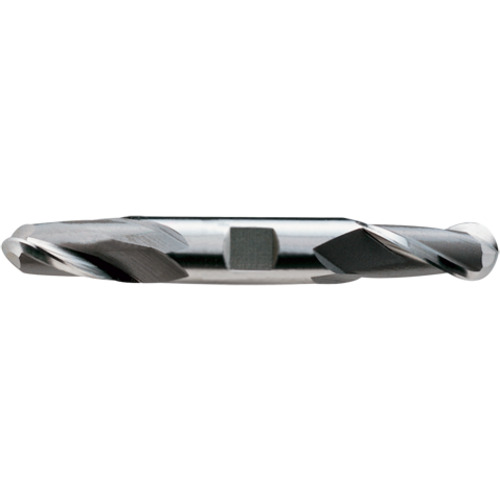

Ball Nose End Mill; 5/16″ Dia. × 9/16″ LOC × 3/8″ Shank Dia. × 3-1/8″ OAL ; 2 FL ; HSSCo8 ; TiAIN E ; Series E2112
| Cutting Diameter (DC) | 5/16″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Corner Radius (RE) | 5/32″ |
| Depth of Cut Maximum (APMX) | 9/16″ | End Shape | Ball Nose |
| Overall Length (OAL) | 3-1/8″ | Decimal Equivalent | 0.3125″ |
| Cutting Edge Material | HSSCo8 | Measurement Type | Inch |
| Coating | TiAlN | Series/List # | E2112 |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Shank Type | Weldon | Single / Double End | Double |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.625
Package Width
0.75
Package Height
0.75
Package Weight
0.092
