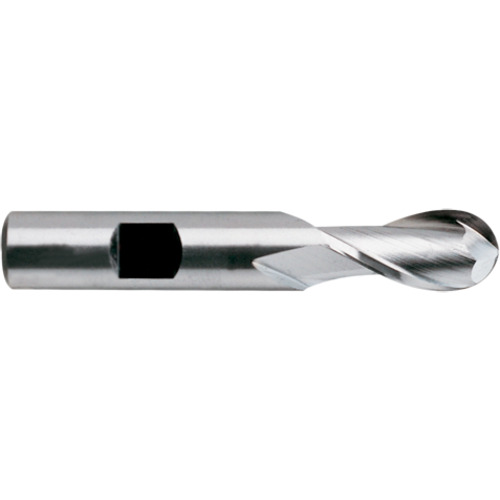

Ball Nose End Mill; 1″ Dia. × 2-1/2″ LOC × 1″ Shank Dia. × 7-1/4″ OAL ; 2 FL ; HSSCo8 ; TiAIN E ; Series E2111
| Cutting Diameter (DC) | 1″ | Usable Length (LU) | 5″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Applicable Material | | Steel | |
| Depth of Cut Maximum (APMX) | 2-1/2″ | Corner Radius (RE) | 1/2″ |
| Overall Length (OAL) | 7-1/4″ | End Shape | Ball Nose |
| Cutting Edge Material | HSSCo8 | Decimal Equivalent | 1″ |
| Coating | TiAlN | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | E2111 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
7.75
Package Width
1.5
Package Height
1.5
Package Weight
1.4525
