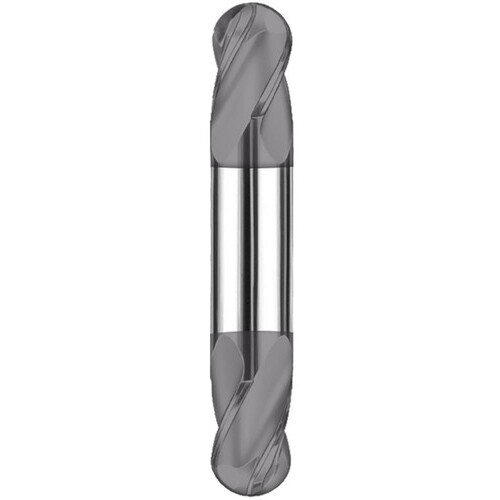

5/64 4FL DE STUB SC BALL
BN End Mill; 5/64″ Dia. × 1/8″ LOC × 1/8″ Shank Dia. × 1-1/2″ OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 5/64″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Flute Helix Angle (FHA) | 30 Degrees |
| Depth of Cut Maximum (APMX) | 1/8″ | Usable Length (LU) | 1-3/8″ |
| Overall Length (OAL) | 1-1/2″ | Flute Type | Spiral |
| Cutting Edge Material | Carbide | Style | Ball Nose |
| Coating | AlTiN | Decimal Equivalent | 0.078125″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.01
