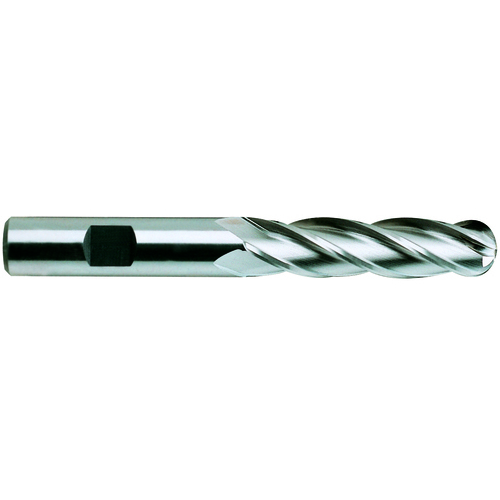

Ball Nose End Mill; 7/8″ Dia. × 3-1/2″ LOC × 7/8″ Shank Dia. × 5-3/4″ OAL ; 4 FL ; HSSCo8 ; TiAIN E ; Series E2021
| Cutting Diameter (DC) | 7/8″ | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 7/8″ | Corner Radius (RE) | 7/16″ |
| Depth of Cut Maximum (APMX) | 3-1/2″ | End Shape | Ball Nose |
| Overall Length (OAL) | 5-3/4″ | Decimal Equivalent | 0.875″ |
| Cutting Edge Material | HSSCo8 | Measurement Type | Inch |
| Coating | TiAlN | Series/List # | E2021 |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Shank Type | Weldon |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6.25
Package Width
1.5
Package Height
1.5
Package Weight
0.844
